• Advanced DSP algorithm creates a faithful reproduction of your miked sound with most pickups.
• Works with any stringed instrument, and some without strings.
• 32 WaveMap slots with all parameters automatically stored and recalled
• 3 EQ blocks each containing a HPF, plus Low, Mid, and High parametric EQs
• Spaciousness control adjusts time spread of impulse response, from 0% to 200%
• Smart feedback control reduces your unique resonance hotspots from 0 to 200%
• System configurable options include tuner style and reference frequency, MIDI program control, external footswitch control.

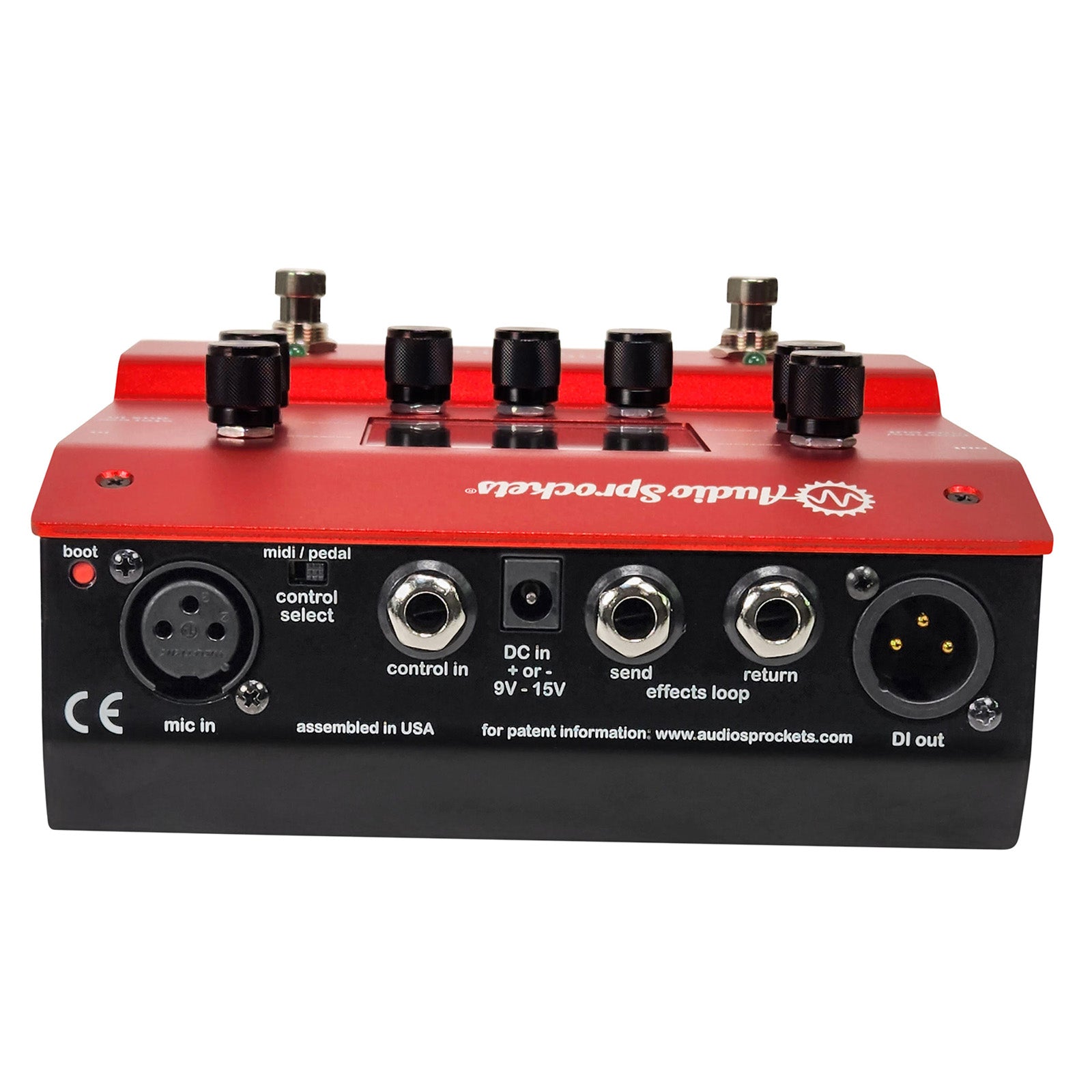

Instrument Input


• 1/4” phone jack
• Input impedance: 1MΩ if using a standard mono plug, 10MΩ if using a TRS plug with RING unconnected
• Gain range: -38dB to +25dB
• Maximum signal level before clipping: +16dBVrms

Aux Input


• 1/4” TRS phone jack
• Left or Right channel:
• Input impedance: 1MΩ
• Gain range: -38dB to +25dB
• Maximum signal level before clipping: +16dBVrms

Right channel:


• Switchable +9V bias through 10K resistor

Mic Input


• XLR female
• Input impedance: 2KΩ differential
• Gain range: -11dB to +49dB
• Maximum signal level before clipping: +18dBVrms
• Switchable +48V phantom power

Main Output


• 1/4” TRS phone jack
• Unbalanced single ended, or impedance balanced differential drive
• Source impedance: 300Ω per side
• Gain range: -34dB to +14dB
• Maximum signal level before clipping: +18dBVrms

DI Output


• 1/4” TRS phone jack
• Voltage and impedance balanced differential drive
• Source impedance: 300Ω per side
• Gain range: -28dB to +20dB
• Maximum signal level before clipping: +24dBVrms differential

Aux Output


• 1/4” TRS phone jack
• Dual mono or stereo operation, capable of driving most headphones
• Source impedance: 20Ω per side
• Gain range: -22dB to +26dB
• Maximum signal level before clipping: +24dBVrms differential

FX Sends


• 1/4” TRS phone jack
• Dual mono or stereo operation
• Source impedance: 500Ω per side
• Maximum signal level before clipping: +18dBVrms

FX Returns


• 1/4” TRS phone jack
• Dual mono or stereo operation
• Input impedance: 1MΩ per side
• Maximum signal level before clipping: +16dBVrms

USB Jack


• USB 2.0
• Micro B

DC Power Input


• 2mm pin, 5.5mm barrel
• Accepts 9-15VDC, either polarity
• Requires 8W minimum startup, 6W continuous.

Control Jack


• 1/4” TRS phone jack
• If Midi selected, wired to the TRS midi standard
• If footswitch selected, Tip and Ring are pulled up to +5V with a 20mA current source
• Footswitches should make momentary closure to ground.

On Board Footswitches


• Optical interrupter sensors for zero wear operation
